Product Description
New service LoadHandler alternators for heavy duty refrigeration trailer and truck units from Prestolite Electric provide reliability and performance to cover virtually the entire transport refrigeration market, including Carrier Transicold refrigeration units utilizing Kubota and other engines. Featuring a dual internal fan design, the latest LoadHandler alternators provide reliable performance in a high-temperature environment through a compact size that doesn’t compromise airflow or cooling performance. Prestolite Electric application-specific, value-driven LoadHandler alternators help to extend service life, improve performance and provide more reliable vehicle uptime.

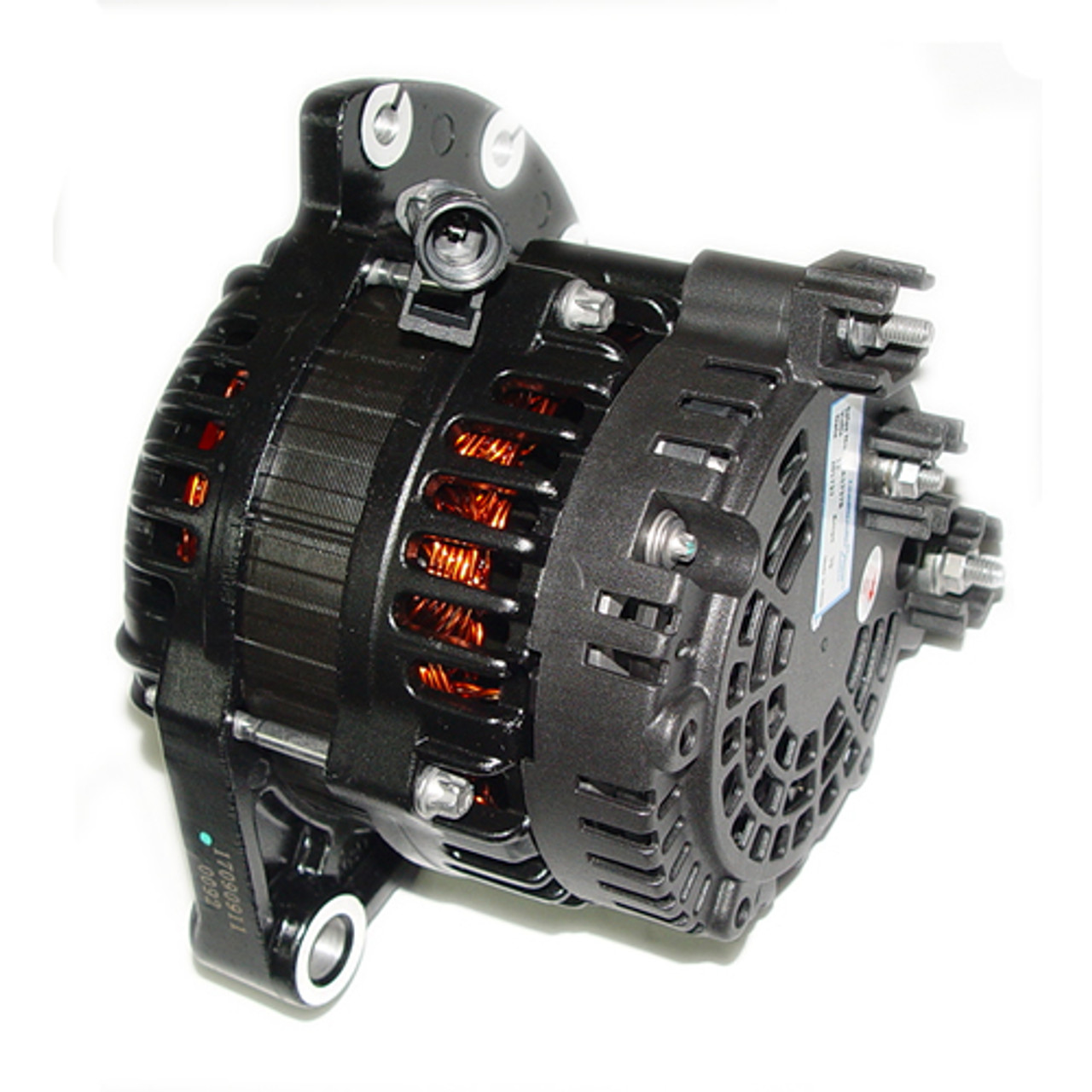

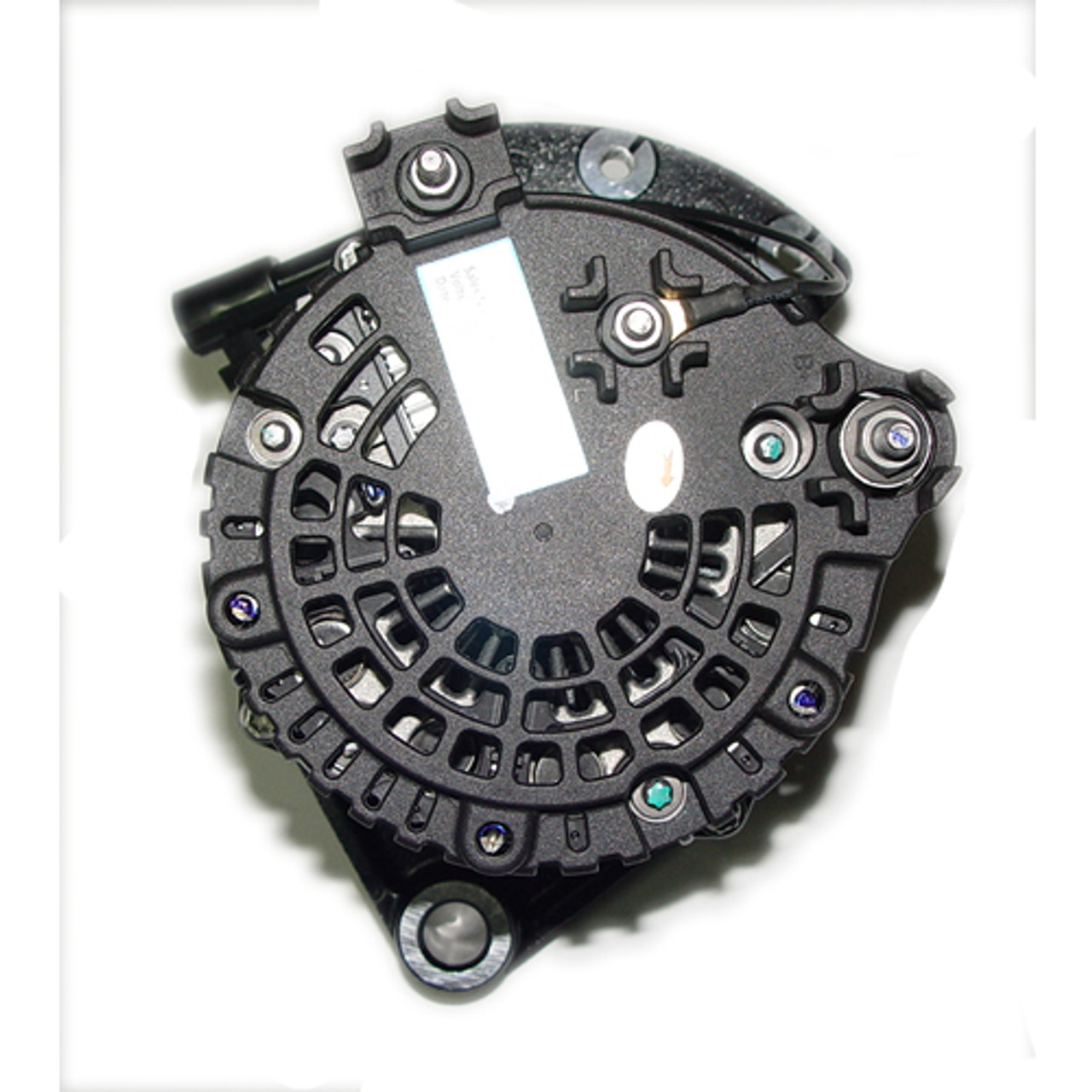

LoadHandler™ Alternators
Dual Internal Fan Design for
Transport Refrigeration Applications
12V, 70- and 105-Amps
Reliable Power Source for
Performance-Critical Market
SPECS
System Voltage 12V
Temperature Rating -30ºC to 105ºC
Mounting 1” Spool Foot
Rotation Counter clockwise
Diodes 6 Avalanche diodes
Shaft Diameter A1737B, 17 mm Shaft
A1738B, 88.4 mm Pulley Diameter
A1739B, 5/8” Shaft
A1742B, 5/8” Shaft
Weight 70-Amp, 9 lbs.
105-Amp, 9.3 lbs.
Warranty Truck Applications, 1-Year*
FEATURES BENEFITS
Dual Internal Fan Design Maintains optimum bearing temperatures during operation & minimizes
heat damage for longer service life – the cooling power of the popular IdlePro™ products
Premium Brushed Style Durable design for a wide range of operating conditions
eCoated & Heavy Duty Housing Improves corrosion resistance & better withstands extreme applications and
vibrations as compared to conventional housings
Heavy Duty Front & Rear Bearings Provides extended service life capabilit
Innovative Rotor Design State-of-the-art rotor performs when you need it most
Application Tested Industry-leading performance testing ensures proper engagement in high
heat conditions
Completely New Unit No core return required & direct drop-in design
A1739B 12V 70A A1739B
Replaces Leece Neville Part Numbers
110-606
110-646
Replaces Carrier Part Numbers
30-00409-02 , 300040902
30-00409-04 , 300040904
30-00409-06 , 300040906
30-00409-07 , 300040907
30-00409-07RM , 300040907rm
30-00409-08 , 300040908
30-00409-10, 300040910
NOTE
Carrier alternators. Carrier trailer alternator. Carrier truck alternator. A1739B alternator are Manufactured with 100% New Components from the Start to Ensure Consistent High Quality All Units are Manufactured to Meet or Exceed OE specifications for Performance and Fit Our Products are Manufactured in Certified Facilities to Ensure Unsurpassed Quality and Reliability Only the Highest Quality Materials are Used in the Manufacturing Process. one day Service Dade, Broward, Doral, Hialeah, Miami, Fort Lauderdale, West Palm, Tampa, Orlando, Jacksonville, Texas, Naples, Fort Myers, International, Florida, key largo, marathon. Key West, Clearwater, Daytona, Ocala, sebring, lake placid
