Product Description

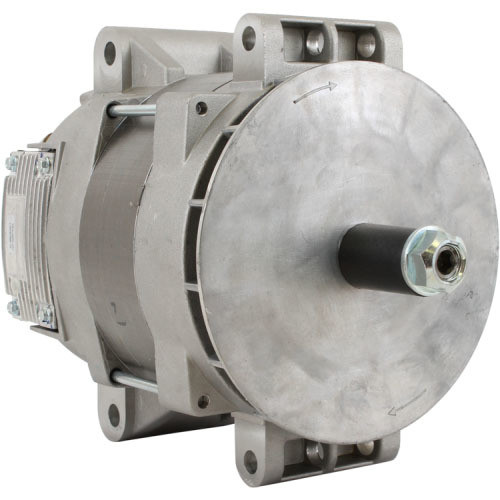

Alternator For Volvo VAH VHD VNL VNM 12V 320 Amp Pad Mount 4912PGH
Features:
- Designed for reliable high output in applications where power demands are varied over a wide range of operating rpm’s
- Solid rectifier lead frame,
- advanced avalanche diodes, welded connections
- Regulator options include self excite, ignition excite, remote sense, or adjustable regulator type configurations
- Brush/slip ring system is enclosed to protect against road dirt
- Fan design offers more efficient air flow and cooler operation under high output load conditions
- Large, cartridge width, front ball bearing is used to support high belt loads
Fits
Volvo Alternator VAH D11 10.8 2011-2017
Volvo Alternator VAH D13 780 2011-2017
Volvo Alternator VHD D11 10.8 2011-2017
Volvo Alternator VHD D13 780 2011-2017
Volvo Alternator VNL D11 10.8 2011-2017
Volvo Alternator VNL D13 780 2011-2017
Volvo Alternator VNL D16 16.1 2011-2017
Volvo Alternator VNL ISX 15.0 2011-2017
Volvo Alternator VNM D11 10.8 2011-2017
Volvo Alternator VNM D13 780 2011-2017
Applications:
Medium and Heavy Duty Trucks
Transit Buses
School Buses
Shuttle Bus
Emergency Vehicles
Military
Specs
| System voltage | 12 |
| Output | 320 |
| Mounting style | PAD |
| Dimensions in | INCHES |
| Rotation | CLOCKWISE |
| Housing coating | RAW |
| UL Approved | No |
| Positive stud size | M8X1.25 |
| Negative stud size | M10X1.5 |
| Rectifier location | INTERNAL |
| Shaft diameter | 7/8 INCH |
Replaces
| Company | Part number |
|---|---|
| INTERNATIONAL TRUCK & ENGINE | LNA0014912PGH |
| VOLVO NORTH AMERICAN CORP. | 21497612 |
| VOLVO NORTH AMERICAN CORP. | LN 4912PGH |
| VOLVO NORTH AMERICAN CORP. | LN A0014912PGH |
School Bus Informational Flyer
NOTE
Alternator For Volvo VAH VHD VNL VNM 12V 320 Amp Pad Mount 4912PGH are Manufactured with 100% New Components from the Start to Ensure Consistent High Quality All Units are Manufactured to Meet or Exceed OE specifications for Performance and Fit Our Products are Manufactured in Certified Facilities to Ensure Unsurpassed Quality and Reliability Only the Highest Quality Materials are Used in the Manufacturing Process. Serving Dade, Broward, Doral, Hialeah, Miami, Fort Lauderdale, West Palm, Tampa, Orlando, Jacksonville, Texas, Naples, Fort Myers, International, Florida, key largo, marathon
Other Details
Return and Warranty policy
We sell only top-quality products and work hard to insure that you are satisfied with your purchases made with D & L Auto and Marine. The following is our
Return and Warranty policy:
When properly installed, our alternators and starters are warranted against defects in materials and workmanship for replacement for one year with original receipt.
We offer a one year replacement warranty on specialized units, i.e., lawn and garden, marine, ATV, industrial starters and alternators and DC motors.
This warranty extends to the application under NORMAL use and service and does not apply to overload (burnt), rust, deliberate abuse, submersion, broken drive gears or housings and/or other damage not directly attributed to item.
Warranty is VOID if unit was improperly installed, handled carelessly, tempered or dismantled.
Warranty is limited to the repair or replacement of defective units only. We offer no case refund on any electrical item that was installed on a vehicle. A restocking fee (20%) will apply to all returns. No case refunds will be given on special order items. If a refund is given, it will be for the purchase price of the items only (original receipt required). No refunds will be given for shipping charges.
Buyer is responsible for all shipping charges for warranted item.
We do not cover any labor claims.
